Features

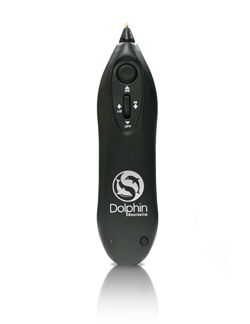

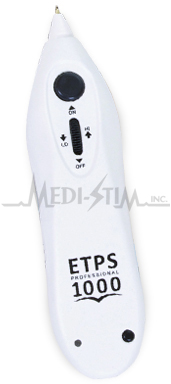

• Hand-held acupuncture/trigger point stimulator

• Point finder and treatment probe in one tip
• Audible variable tone indicator for locating trigger points

• Remote extension probe for treating hard-to-reach areas

• Alternative for acupuncture therapy without needles

• Positive (tonify), Negative (disperse) or Bipolar (tonify & disperse) switch

• Trigger point Search and Stim button

• Adjustable skin sensitivity dial
• Built in thumb grounding plate
• Battery test button

• LED output indicator light

• 1 year warranty

• Comes with Functional Acupuncture for
  Pain Management, (with illustrations and protocols for properly treating points for over 100 different pain disorders) Remote Extension Probe (#ETPS-RP), Carrying Case, & 1 9V Alkaline Battery

• Grounding Wrist Strap Sold Separately (#TENSPR-WS)


Technical Specifications

• Search Mode

• Output Parameters (skin resistance 500K ohms): Voltage 3.8 mv; Pulse Length 0.0909 microseconds; Frequency 5.518 KHz; Duty Cycle 51%

• Output Parameters (skin resistance 10K ohms): Voltage 71.6 mv; Pulse Length 0.0909 microseconds; Frequency 5.88 KHz; Duty Cycle 51%

• Stimulation Mode: Monophasic
  Output Parameters (resistance 500 ohms): Voltage .896 V; Pulse Length 213 milliseconds; Frequency 2.35
• Hz; Duty Cycle 51%

• Output Parameters (resistance 10K ohms): Voltage 5.25 V; Pulse Length 213 milliseconds; Frequency 2.30 Hz; Duty Cycle 51%

• Stimulation Mode: Biphasic

• Output Parameters (resistance 500 ohms): Voltage 1.38 V; Pulse Length 213 milliseconds; Frequency 1.17 Hz; Duty Cycle 50%

• Output Parameters (resistance 10K ohms): Voltage 10.9 V; Pulse Length 213 milliseconds; Frequency 1.0 Hz; Duty Cycle 50%

• Maximum Pulse Width in Stimulation Mode 213 milliseconds for all polarity settings

• Maximum Intensity Setting 500 ohms resistance gives 85 microamps; 10K ohms resistance gives 600 microamps

• Minimum Intensity Setting 10K ohms resistance gives 300 microamps

• Power Source 9-Volt battery
