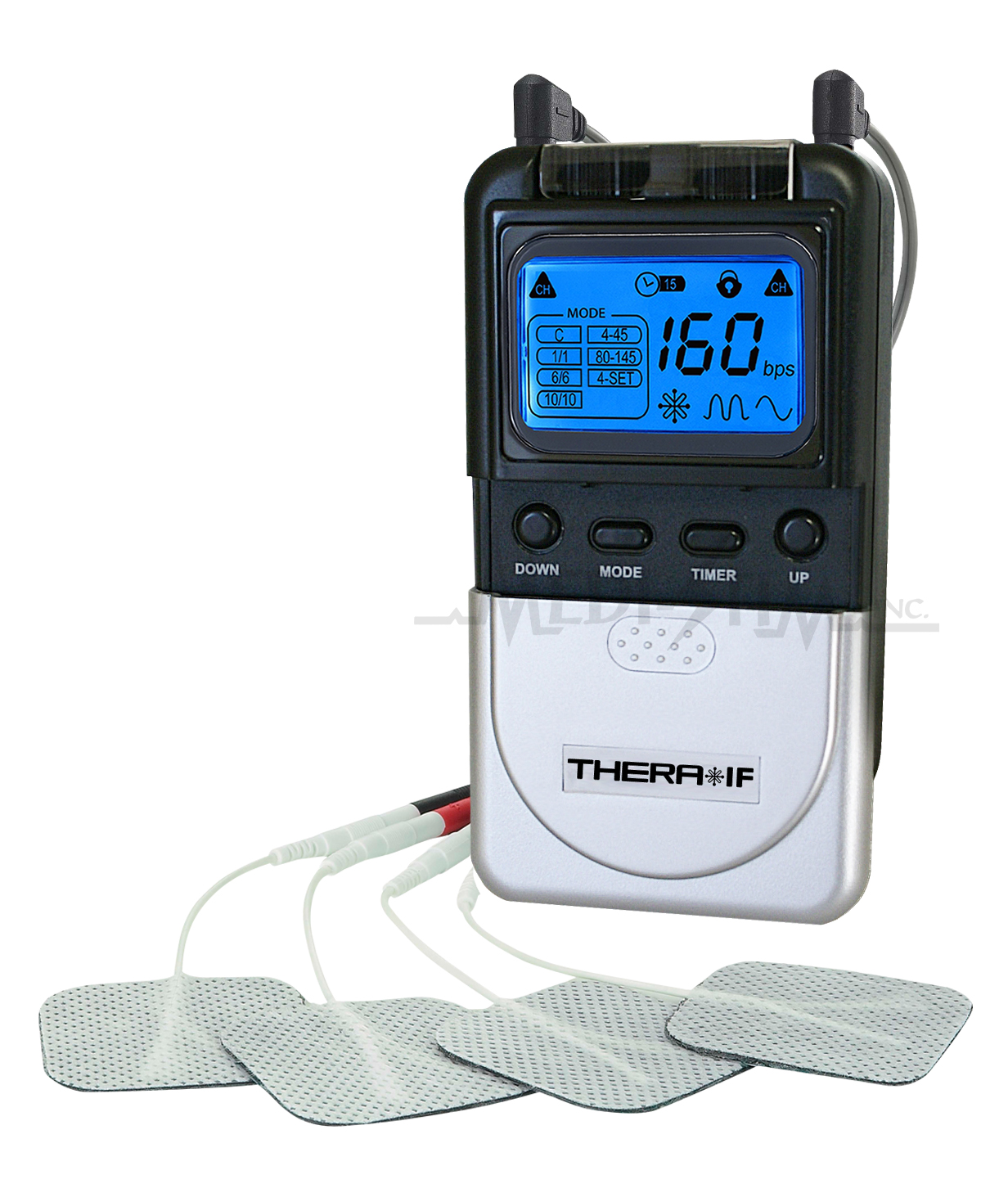

| Interferential Units > Thera-IF |

|
 |
- Dual channel (4-lead) digital interferential
- Bi-polar (2 electrode) or quadra-polar (4 electrode) treatment option
- 1 constant option
- 5 frequency shift options (1|1 abrupt, 6|6 abrupt, 6/6 ramped, 10|10 abrupt, 10/10 ramped)
- 3 frequency sweep options (4-45 Hz, 80-145 Hz, 4-User Set Frequency)
- Sine-wave waveform for more comfortable stimulation
- Adjustable frequency
- Last setting recall & settings lock
- Low Battery Indicator
- AC wall adapter or 9V battery power supply
- Treatment timer (15 or 30 minutes)
- 1-year warranty
- Comes with 1 pkg of 4 reusable self-adhering electrodes, 1 set 43” pin lead wires, 1 each 9V alkaline battery, AC wall adapter, carrying case, and instruction manual
- Leadwire reorder # LW46SPLE
- Channel: Dual, isolated between channels
- Amplitude: Adjustable, 0 - 60 mA peak into 500 ohm load each channel, constant current
- Waveform: Symmetrical balanced sine wave
- Pulse Width: 125 µS maximum
- Carrier Frequency: 4000 Hz fixed (Channel 1)
- Modulating Frequency: 4004 - 4160 Hz. adjustable (Channel 2)
- Interference Frequency: 4 - 160 Hz, adjustable in 4 Hz increments
- Maximum Charge: 15 micro-coulombs maximum
- Modes: Constant, Auto Sweep, Frequency Shifts
Constant - 4 - 160 Hz, adjustable
Auto Sweep - 4 - 45 Hz, 80 - 145 Hz, 4-Set Hz
Frequency Shifts - 1|1 abrupt, 6|6 abrupt, 6/6 ramped,10|10 abrupt, 10/10 ramped
- Sweep Time: 15 seconds
- Frequency Shift Percentage: Frequency shifts from 30% below set frequency to 60% above and then returns to 30% below set frequency
- Timer: Selectable 15 or 30 minutes
- Power Supply: AC wall adaptor or 9-Volt Battery
- Size: 10.8 x 6.15 x 2.5 cm
- Weight: 100 grams without battery
|
|
